T8 Microwave Sensor LED Tube 1.2Meter (Frosted Cover)

T8 Microwave Sensor LED Tube 1.2Meter (Frosted Cover)

Specifications:
T8 Led Tube Lights with high bright, wide beam angle can used for many special place.

Parameter

Model	B-T8AMS-9W/B-T8AMS-14W/B-T8AMS-18W
Power consumption	9W/14W/18W
Input voltage	AC85-265V/50-60Hz
Power factor	≥0.95
Power efficiency	≥0.88
Available emitting color	Warm white, Natural white, Cool white
CCT	3000k/4000k/6000k
Luminous flux	100lm/w
CRI(Ra)	>80
Beam angle	150 degrees
Size	600MM/900MM/1200MM
LED quantity	48/72/96
LED type	SMD2835 LED
Material	Aluminum
PC cover	Diffusion PC
Lamp holder	Oval
Cap type	G13
Certificate	CE & RoHS
Operating temperature	-20—60°C
Storage temperature	-20—60°C
Lifespan	50000 hours
Fade in*Dimming	Time interval is adjustable
Warranty	3 years




Function




Color:


Packing:

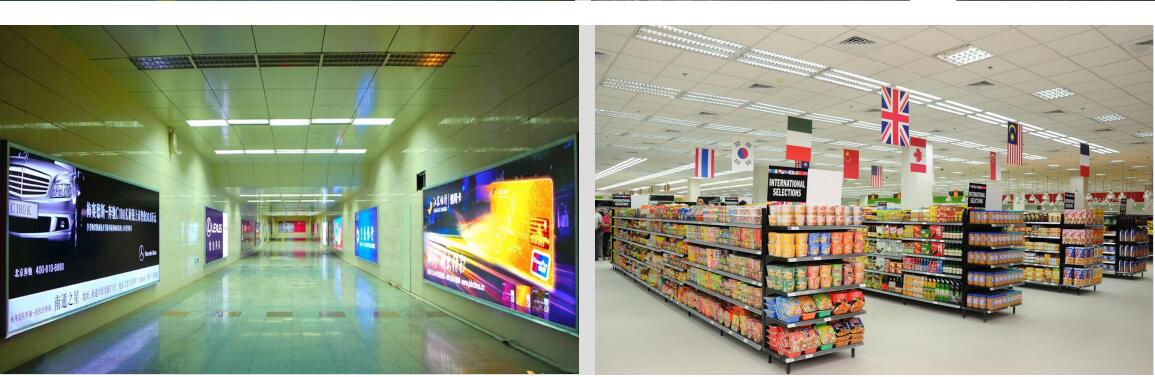

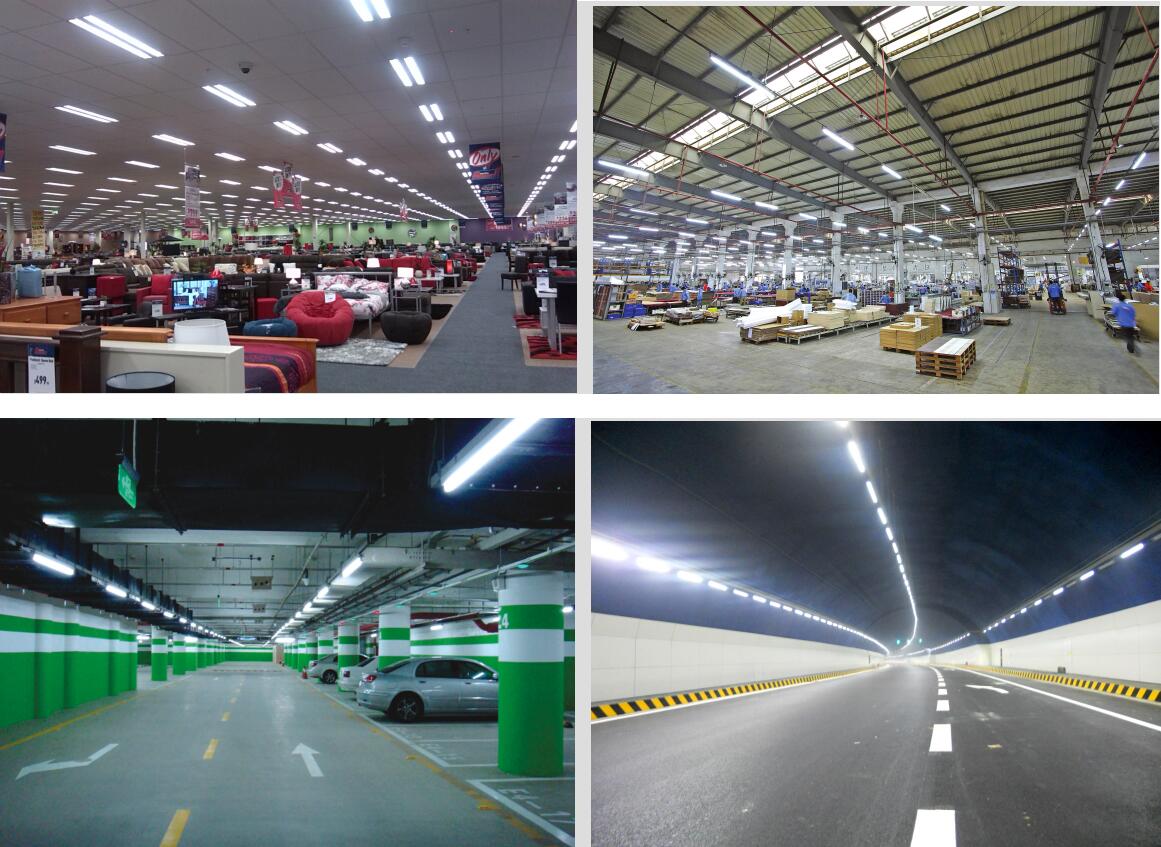

Application:
LED Tube light  has simple and beautiful appearance, can be applied for decorative
application and lighting application. widely used in factory,home,villa,hotel,supermarket,
office,parking lot and so on.

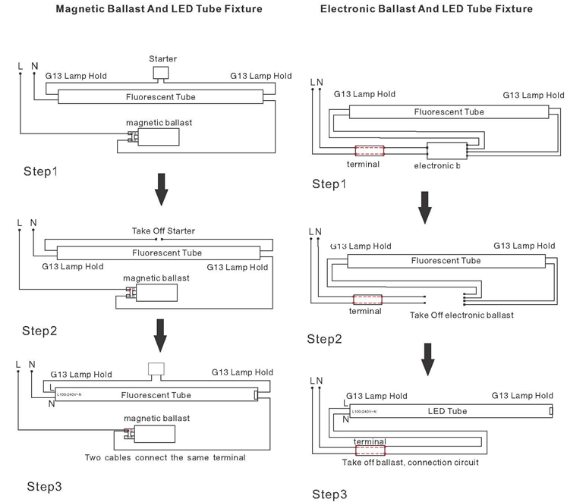

Installation

Installation Cautions
1. Please check if the LED tubes are damaged before installation;
2. Please check if the corresponding lighting switches are off before installation;
3. Please check if the wires are correctly connected and the ballast is removed during installation;
4. Please don’t dismantle the product by a non-qualified person;
5. The product can work properly if the installation diagram is followed.
